How-To: Push & Pop Screens

Goal: open a menu screen on a layer, hand it data, close it, and optionally block input while a heavy widget streams in.

1. Make the screen a Crimson activatable widget

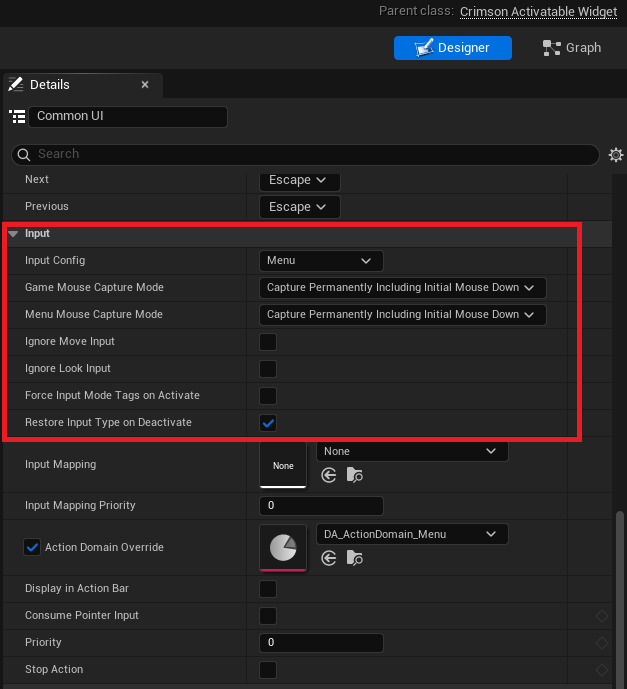

Create your screen Blueprint with parent Crimson Activatable Widget. In Class Defaults, category Input, pick how it routes input while active:

GameMouseCaptureMode / MenuMouseCaptureMode control mouse capture per mode; bIgnoreMoveInput / bIgnoreLookInput additionally freeze pawn movement/camera while the widget is active. See Concept: Input Routing & Activatable Widgets for how these apply and restore.

2. Push it

BlueprintC++

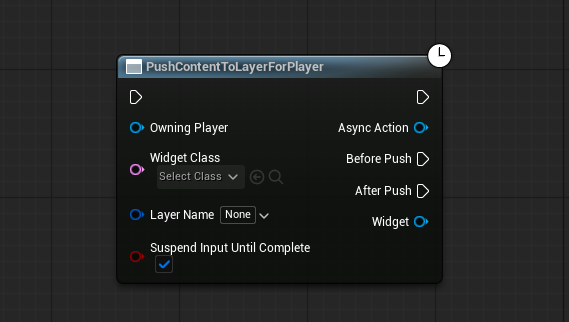

Use the async Push Content To Layer For Player when the class is a soft reference or you want the BeforePush hook. For an already-loaded hard class, the synchronous node of the same name on Crimson UI Extensions returns the widget directly - then set variables on the return value.

3. Close it

Two equivalent paths: from inside the screen call Deactivate Widget (CommonUI removes a deactivated widget from its stack); from outside call Pop Content From Layer with the widget reference.

// Inside the widget:
DeactivateWidget();
// From outside (CrimsonCommon):
UCrimsonUIExtensions::PopContentFromLayer(Widget);
// Find-and-remove when you only know the class/instance:
Layout->FindAndRemoveWidgetFromLayer(Widget);

4. Suspend input during transitions

The async push already suspends input while streaming (its bSuspendInputUntilComplete defaults to true). For your own transitions, Suspend Input For Player returns a token; pass the same token to Resume Input For Player. Both live on Crimson UI Extensions (CrimsonCommon) and are BlueprintCallable.

const FName Token = UCrimsonUIExtensions::SuspendInputForPlayer(PC, TEXT("CinematicIntro"));
// ... later ...
UCrimsonUIExtensions::ResumeInputForPlayer(PC, Token);

See also

• How-To: Get the Building Blocks - all the getter chains used above.
• Concept: Input Routing & Activatable Widgets - what happens on activate/deactivate.
• How-To: Show Confirmation Dialogs - modal-layer pushes with a result callback.
