How-To: Play a Custom Widget Animation (Optional)

Goal: add a per-style widget animation (punch-in for crits, gentle rise for heals) on top of - or instead of - the built-in physics motion. Each style config names an animation (FCrimsonNumberPopConfig::AnimationName); the widget reads that name and plays the matching UWidgetAnimation.

Prerequisites
Your pop widget from Quick Start, plus one UWidgetAnimation per animation name your registry uses (e.g. Anim_Pop, Anim_Crit).

1. Override StartPop

Before calling StartPop, the subsystem writes the resolved style's animation name into ActiveAnimationName (BlueprintReadOnly). Override StartPop in your widget Blueprint, call the parent to keep the built-in text setup, motion, fade, and pool return, then play the animation whose name matches.

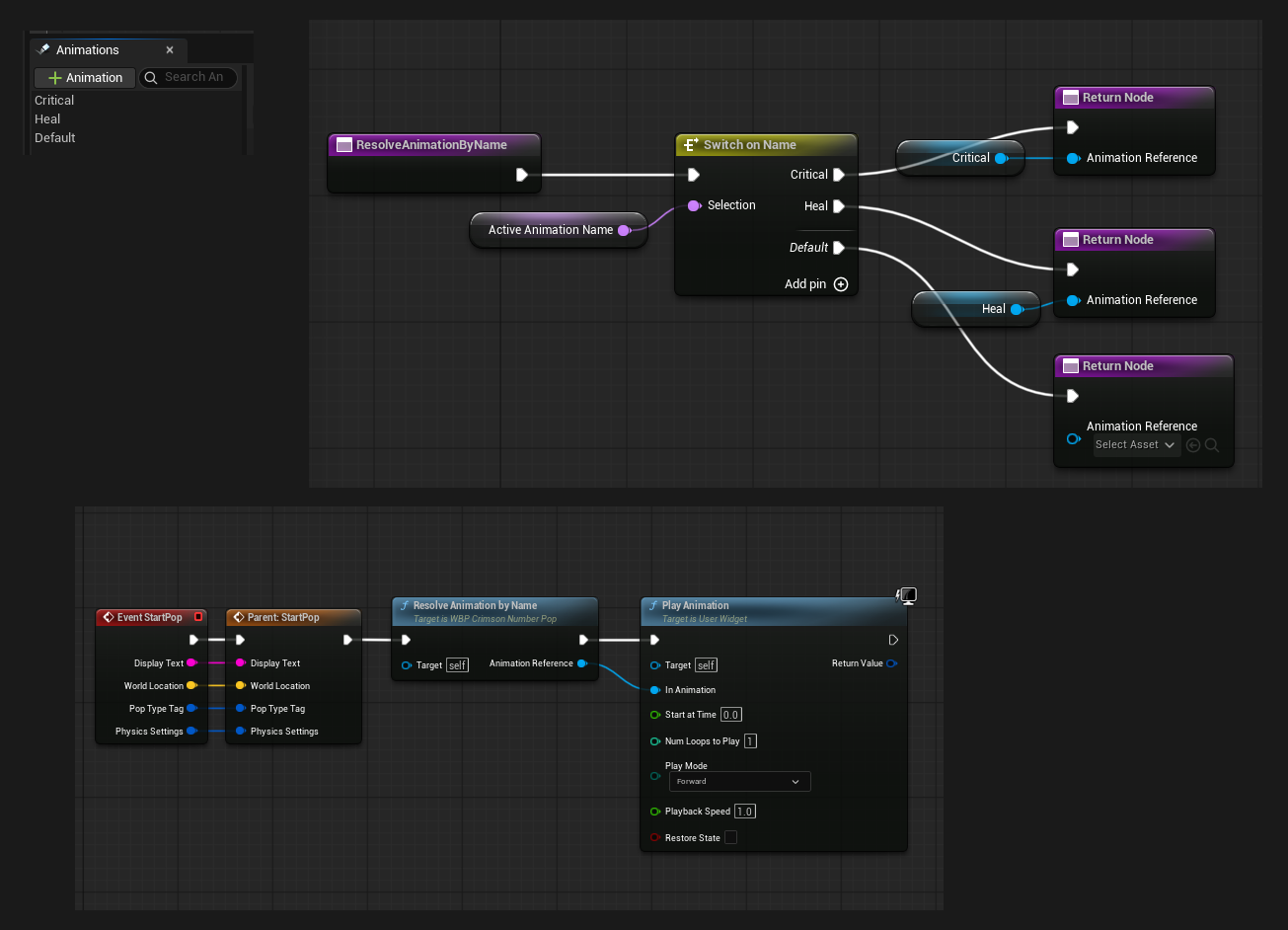

Widget Blueprint -> override StartPop -> call Parent: Start Pop -> switch on Active Animation Name -> Play Animation (Anim_Pop / Anim_Crit / ...).
Always end in OnPopFinished
A pooled widget only returns to the pool when OnPopFinished broadcasts. The parent implementation does this automatically after PhysicsSettings.Duration. If you skip the parent call to take over the motion entirely, broadcast OnPopFinished yourself when your animation ends - otherwise the widget is never recycled.

2. Force-finish with CancelPop

CancelPop (BlueprintCallable) immediately hides the widget and broadcasts OnPopFinished, returning it to the pool. The subsystem uses it to recycle the oldest pop when MaxActivePops is exceeded; call it yourself to cut a pop short (e.g. on the owner's death screen).

Verify
A crit-tagged broadcast plays your Anim_Crit animation while a normal hit plays Anim_Pop - and both widgets are reused on later hits (no widget count growth in the Widget Reflector).

See also

  • Concept: Styles, Formatting & the Widget Pool - how the style config reaches the widget.
  • Quick Start step 2 - authoring AnimationName on each style rule.
